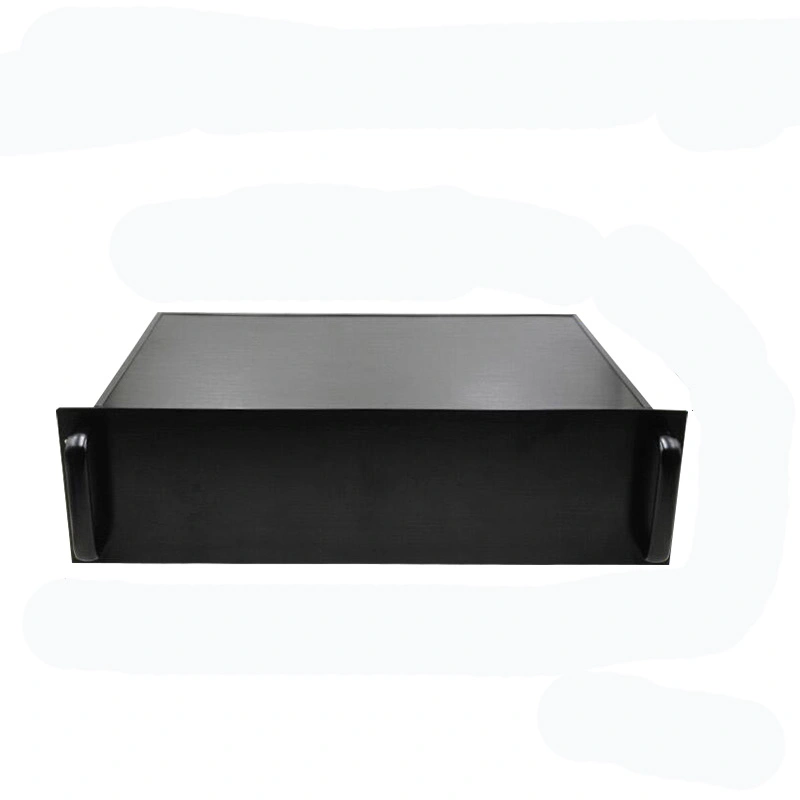

The core advantage of a 3U sheet metal aluminum alloy rackmount chassis is the synergy between its 3U form factor and aluminum alloy craftsmanship. This design tackles the key drawbacks of traditional steel enclosures—namely their weight, poor heat dissipation, and susceptibility to corrosion—without compromising on structural integrity or compatibility.
By leveraging a material that is significantly lighter than steel (30-50% less), the chassis reduces strain on racks, simplifies installation, and is ideal for weight-sensitive applications like wall-mounted or vehicle-mounted equipment. Its high thermal conductivity, which is 5-10 times better than steel, transforms the entire chassis into a passive heatsink, greatly improving cooling efficiency, especially in high-load scenarios like multi-drive servers.
Furthermore, the natural protective oxide film on aluminum provides superior corrosion and weather resistance, extending the lifespan of the equipment in harsh environments. The use of mature sheet metal processes ensures that despite being lightweight, the chassis remains structurally robust, able to withstand stacking and vibration.
In essence, the 3U sheet metal aluminum alloy chassis is a well-balanced solution for high-value applications that require lightweight design, excellent thermal performance, and durability without sacrificing compatibility or reliability.
| Specifications | 133 x 483 x 300 mm |
|---|---|
| Material | 6063 Aluminum |
| Processing technology | Brushed and anodized finish |
| Application scope | data centers, enterprise IT, telecommunications, broadcast and professional AV, industrial control, security monitoring, and research/healthcare |
Excellent Extrudability
6063-T5 aluminum is highly favored for its exceptional
Superior Corrosion Resistance
This alloy forms a dense, natural oxide layer that provides outstanding corrosion resistance against atmospheric conditions, water, and many chemicals. This makes it a perfect choice for outdoor or high-moisture environments. The corrosion resistance can be further enhanced with anodizing, which also allows for a variety of colors and finishes.
Application
Applications of Sheet Metal Enclosures
Sheet metal enclosures are primarily used to provide robust and durable protective casings for various electronic, mechanical, and electrical equipment. They play a critical role in numerous industries, including:
Electronics & Telecommunications: Used for casings of servers, networking devices, computers, and telecom base stations.
Industrial Automation: Serve as control cabinets and enclosures for industrial machinery and instruments, providing protection against harsh industrial environments.
Medical Devices: Offer enclosures that meet high standards for cleanliness and safety for diagnostic and monitoring equipment.
New Energy: Applied in devices like PV inverters, charging piles, and energy storage systems to withstand severe outdoor conditions.
Transportation & Security: Protect automotive electronics, railway signaling equipment, and security cameras.
Production and Delivery
Production and Delivery
How long does mold opening take?
15-25 days
How long does sampling take?
Samples are completed in 3-7 days.
How long does mass production take?
15-25 days
Supported Payment Methods
Supported Payment Methods
We support the following payment methods:
Trade Assurance
T/T (Telegraphic Transfer)
VTB (VTB Bank)
Offshore Account
About us
Xiamen Tongcheng Jianhui Industry and Trade Co., Ltd. is a high-tech enterprise specializing in the R&D, production, and sales of diverse electronic and electrical metal enclosures (such as chassis, cabinets, and cases for relays, routers, and industrial control) using a complete set of advanced processing equipment, including CNC punching, bending, and fiber laser cutting machines.
How to Order?
Step One
Send your Files and Request Signed NDA
Step Two
Engineering Analysis Send a Quotation
Step Three
Confirm the Order
Start Manufacturing
Step Four
100 % QC Inspection Machine Part
Step Five
Surface Treatment Feedback to Customer
Step Six
Shipping Feedback Tracking Number
Step Seven
After-sale service
Why Choose us？
Comprehensive Metal Fabrication & Machining
We handle the entire production process in-house, from initial mold design and development to final surface treatment. Our comprehensive capabilities, backed by specialized teams, advanced machinery, and extensive experience, include laser cutting, welding, stamping, bending, and CNC machining.
Professional engineering team
We have a professional team of three engineers, all with master’s degrees and over 10 years of experience in mold design and metal manufacturing.
With 21 years of manufacturing experience
With 21 years of experience in the metal parts manufacturing industry, we are a seasoned company specializing in providing high-quality, precision-engineered products to our clients. Over two decades of expertise have allowed us to build a strong foundation of knowledge and exceptional production capabilities, enabling us to meet a wide range of complex design requirements. Our goal is to be a trusted partner for your business, delivering excellence through superior craftsmanship and reliable service.
